HYDRAULIC FILTRATION

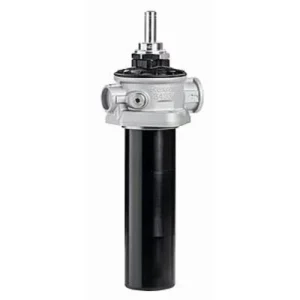

Return line filter for reservoirs of a hydraulic system
Hengst Return Line filters are designed for installation on fluid tanks of hydraulic or lubrication systems. Their function is to separate solid materials from fluids, and they are also used as filling or bypass filters.
- Plastic parts are electrically conductive
- Additional G1/4 meterimg connection locations available
- Additional return connection from NG0160 in G3/4 is series for e.g. leakage oil line
- The filter element is protected internally from fluid flow path
- Bypass valve in filter head is in series
- Clippable outlet tubes for nominal sizes 0040, 0063, 0100 in increments of
110mm, 150mm and 250mm - Optional attachable breather filter for NG0040, 0063 and 0100. slash protection
also available - Modular maintenance indicator with plug-on el. switching element in 4 versions
- Optional additional connections for second return from NG0160 onwards
- Curved lid – When used outdoors, water does not collect on the lid.
 |
Nominal size: 0040 – 2500 |
|---|---|
 |
Maximum volume flow in l/min: 1300 |
 |
Maximum operating pressure in bar: 10 |
 |
Replacement filter element: 1.0040 – 2500 |
|---|
 |
RE 51424 – Click Here |
|---|
Find the right filter in only a few steps with the our Fit4Filter search tool.
Easily identify other major filter manufacturers and cross reference to the equivalent Hengst Part number:
- Bosch Rexroth Filter Cross Reference
- Donaldson Filter Cross Reference
- Hydac Filter Cross Reference
- Pall Filter Cross Reference
- Parker Filter Cross Reference
And many more major filter manufacturers. Click here to search our Fit4Filter tool.
- Plastic parts are electrically conductive
- Additional G1/4 meterimg connection locations available
- Additional return connection from NG0160 in G3/4 is series for
e.g. leakage oil line - The filter element is protected internally from fluid flow path
- Bypass valve in filter head is in series
• Clippable outlet tubes for nominal sizes 0040, 0063, 0100 in increments of
110mm, 150mm and 250mm - Optional attachable breather filter for NG0040, 0063 and 0100. slash protection
also available - Modular maintenance indicator with plug-on el. switching element in
4 versions - Optional additional connections for second return from NG0160 onwards
- Curved lid – When used outdoors, water does not collect on the lid.
- From NG0400 to 2000 available option with mounting plate
(only 10TDN)
|
Nominal size: 0040 – 2500 |
|---|---|
|
Maximum volume flow in l/min: 1300 |
|
Maximum operating pressure in bar: 10 |
|
Replacement filter element: 1.0040 – 2500 |
|---|
|
RE 51424 – Click Here |
|---|
