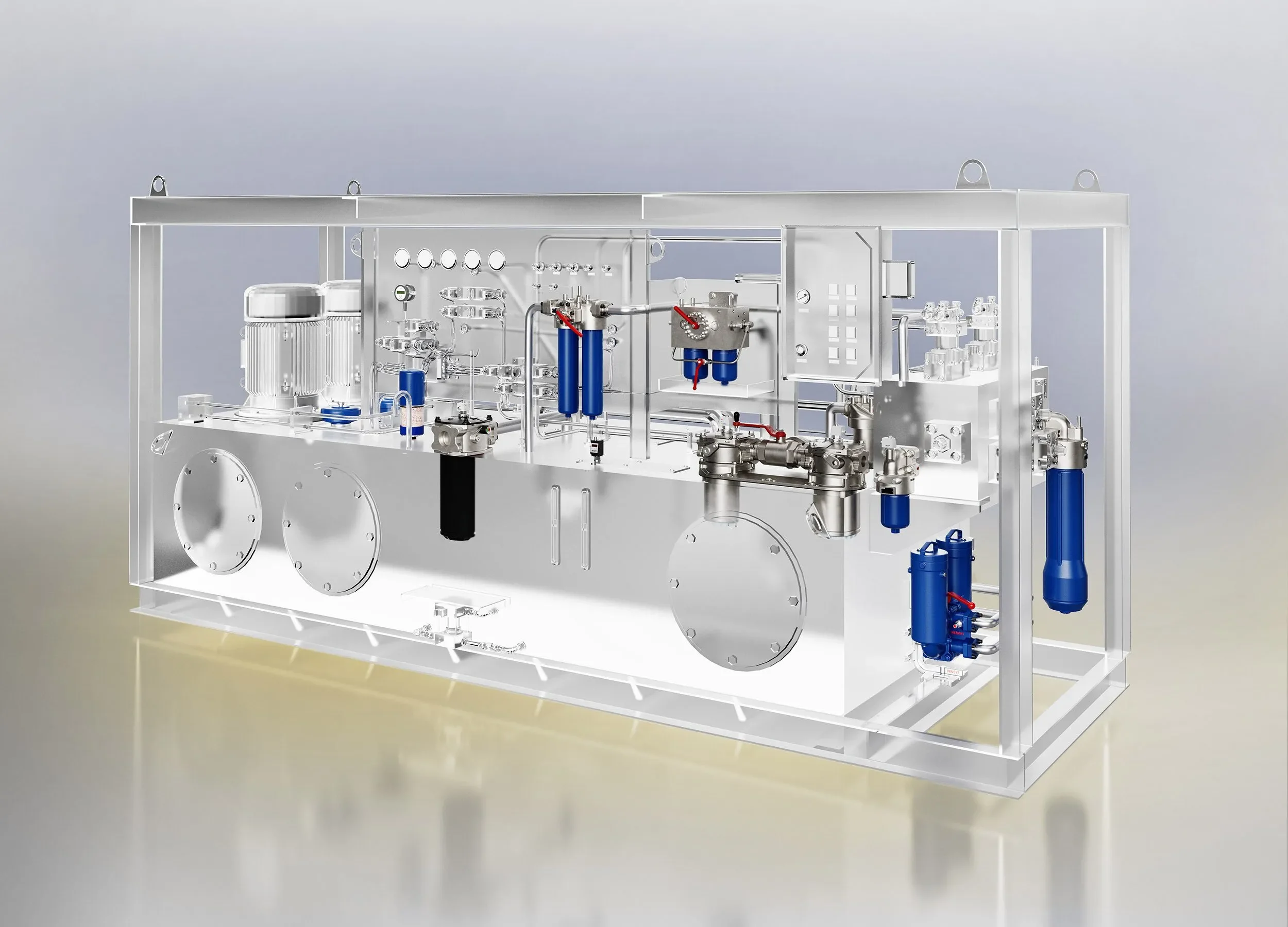

HENGST HYDRAULIC POWER UNIT

flexible and customisable filtration solutions for your HPU

Hengst Filtration has developed a comprehensive range of filtration solutions that enables complete customisation of HPUs to suit individual needs. Hengst proudly offers greater flexibility for mounting, positioning, assembly configurations to custom mounting plates and custom test ports.

See our interactive capabilities below.

ProEXR File Description =Attributes= channels (chlist) compression (compression): Zip16 dataWindow (box2i): [0, 0, 6143, 4095] displayWindow (box2i): [0, 0, 6143, 4095] lineOrder (lineOrder): Increasing Y pixelAspectRatio (float): 1 screenWindowCenter (v2f): [0, 0] screenWindowWidth (float): 1 type (string): "scanlineimage" =Channels= B (float) Background.blue (float) Background.green (float) Background.red (float) Beauty.blue (float) Beauty.green (float) Beauty.red (float) Caustics.blue (float) Caustics.green (float) Caustics.red (float) Depth.alpha (float) DiffuseFilter.blue (float) DiffuseFilter.green (float) DiffuseFilter.red (float) DiffuseLighting.blue (float) DiffuseLighting.green (float) DiffuseLighting.red (float) Emission.blue (float) Emission.green (float) Emission.red (float) G (float) GI.blue (float) GI.green (float) GI.red (float) PuzzleMatte 1.blue (float) PuzzleMatte 1.green (float) PuzzleMatte 1.red (float) PuzzleMatte 2.blue (float) PuzzleMatte 2.green (float) PuzzleMatte 2.red (float) PuzzleMatte 3.blue (float) PuzzleMatte 3.green (float) PuzzleMatte 3.red (float) PuzzleMatte 4.blue (float) PuzzleMatte 4.green (float) PuzzleMatte 4.red (float) PuzzleMatte 5.blue (float) PuzzleMatte 5.green (float) PuzzleMatte 5.red (float) PuzzleMatte.blue (float) PuzzleMatte.green (float) PuzzleMatte.red (float) R (float) Reflections.blue (float) Reflections.green (float) Reflections.red (float) ReflectionsFilter.blue (float) ReflectionsFilter.green (float) ReflectionsFilter.red (float) Refractions.blue (float) Refractions.green (float) Refractions.red (float) SSS.blue (float) SSS.green (float) SSS.red (float) Shadows.blue (float) Shadows.green (float) Shadows.red (float) SpecularLighting.blue (float) SpecularLighting.green (float) SpecularLighting.red (float) TransTint.blue (float) TransTint.green (float) TransTint.red (float)

BREATHER FILTER BSFK

  • Breather Filter BFSK
  • Connection up to G11/4
  • Optional adapter plate
    including check valve
  • Optional maintenance indicator


ONLINE PARTICLE MONITOR OPM II

  • Online particle monitor
  • Cleanliness class display according
    to ISO and SAE
  • Integrated data memory
  • Suitable for mineral-oils


DUPLEX FILTER 50/150/250LDN0040-0400

  • Duplex filter with filter elements to DIN24550
    Pressure equalisation function
    integrated in the switch-over
  • Pmax = 250bar
  • Top and back mounting possibilities
  • Very low leakage rate during filter element changes
  • Optional measuring part
  • Mini-mess connectors for oil sampling and/or venting


DUPLEX FILTER 400LDN0040-1000

  • Duplex filters with filter elements to DIN24550
  • Pmax=400bar,
  • Very low leakage rate during filter elements changes
  • Bleeding and measuring port are standard
  • Mini-mess connectors for oil sampling and/and or venting


INLINE FILTER 110 LEN

  • New flow-optimised filter head
  • Reinforced and more stable mounting interface
  • Filtration support by means of cycloneshaped
    flow path
  • Easier removal of the filter element due to an
    ejection spring
  • New improved by-pass valve (applies to all products)
  • Aluminium with wide fluid compatibility

BLOCK MOUNTING FILTER 450FEN0040-01000-2x

  • Block Mounting Filters with filter elements
    to DIN24550
  • Outlet below intel
  • Max. DN50
  • Pmax 450bar
  • High filtration performance due to the
    tangential cyclone effect flow path

BLOCK MOUNTING FILTER 245/350PSFN0040-1000

  • Block Mounting Filters with filter elements
    to DIN24550
  • Outlet below inlet
  • Max. DN38
  • Pmax 350 bar
  • High filtration performance due to
    tangential cyclone effect flow path

DUPLEX FILTER 50/63FLDKN0063-2500

    • Duplex filter with ball valve change over  for lower leakage rate
      and filter elements to DIN24550
    • Pmax 63bar
    • Max. DN100
    • Pressure equalisation from size 0400 and larger
    • Sampling ports provided as a standard on all sizes
    • Two possible mounting options as a standard on all sizes
    • Standard lifting lug from size o400 and larger
    • Wall mount as a standard, foot mount optional
    • Easy to operate  and/or changing of filter elements
    • Filter cover with lifting handle
    • Improved filtration through integrated cyclone flow path
    • Magnetic drain plug as a standard on all sizes

TANK MOUNTED FILTER 10TDN0040-2500

  • Filter for tank mounting, switchable
  • Additional sampling/
    measurement ports as  a standard on all sizes
  • Additional ports optional /
    Ball valve change-over for lower leakage rate
  • Mounting plate  from size 0400-2500
    optimising simple design and hassle-free mounting
  • Drain pipes (extension of the outlet) optional

HUMIDITY SENSOR WGM

  • Permanent measurement of humidity and
    temperature
  • Analogue Output with 4-20mA or IO-l-ink
  • No calibration to fit the fluid to be measured
    remote display optional

TANK MOUNTED FILTER 10TEN0040-2500

  • Filter for tank mounting
  • Additional sampling/measurement
    ports as a standard on all sizes
  • Available as an option with
    different electrical switching elements
  • Drain pipes (extension to the outlet) optional

BREATHER FILTER TLF

  • Breather filter
  • Use a Aquasorb AS filter material connection up to DN250
  • Robust construction suitable for heavy industry
  • Optionally with internal thread (TLF I) or external head (TFLII)
  • Optional filling sieve (TLF III)

HENGST HPU FILTERS

Australian mining filtration solutions

The hydraulic power unit is the central component that supplies a hydraulic system with the required pressure and flow rate. Hengst has the filtration solutions to ensure reliabiltiy and functionality with breather filters, inline filters, duplex fulters and monitoring equipment to protect and prevent unscheduled downtime.

Contact our team for how we can help you.
